Bantuan Simpul 2.0

Anyone can braid PE lines easily, reliably, and quickly!
With the switch-type wavy line hook and offset arm, you can easily, reliably, and quickly tie the PE line and leader with an FG knot.
When carrying, you can close the arm to store it compactly.

SPEC

●PE Line: 0.3-6
●Leader: 3lb-70lb
●Size: 58x149x39mm
　 105x57x39mm (when stored)

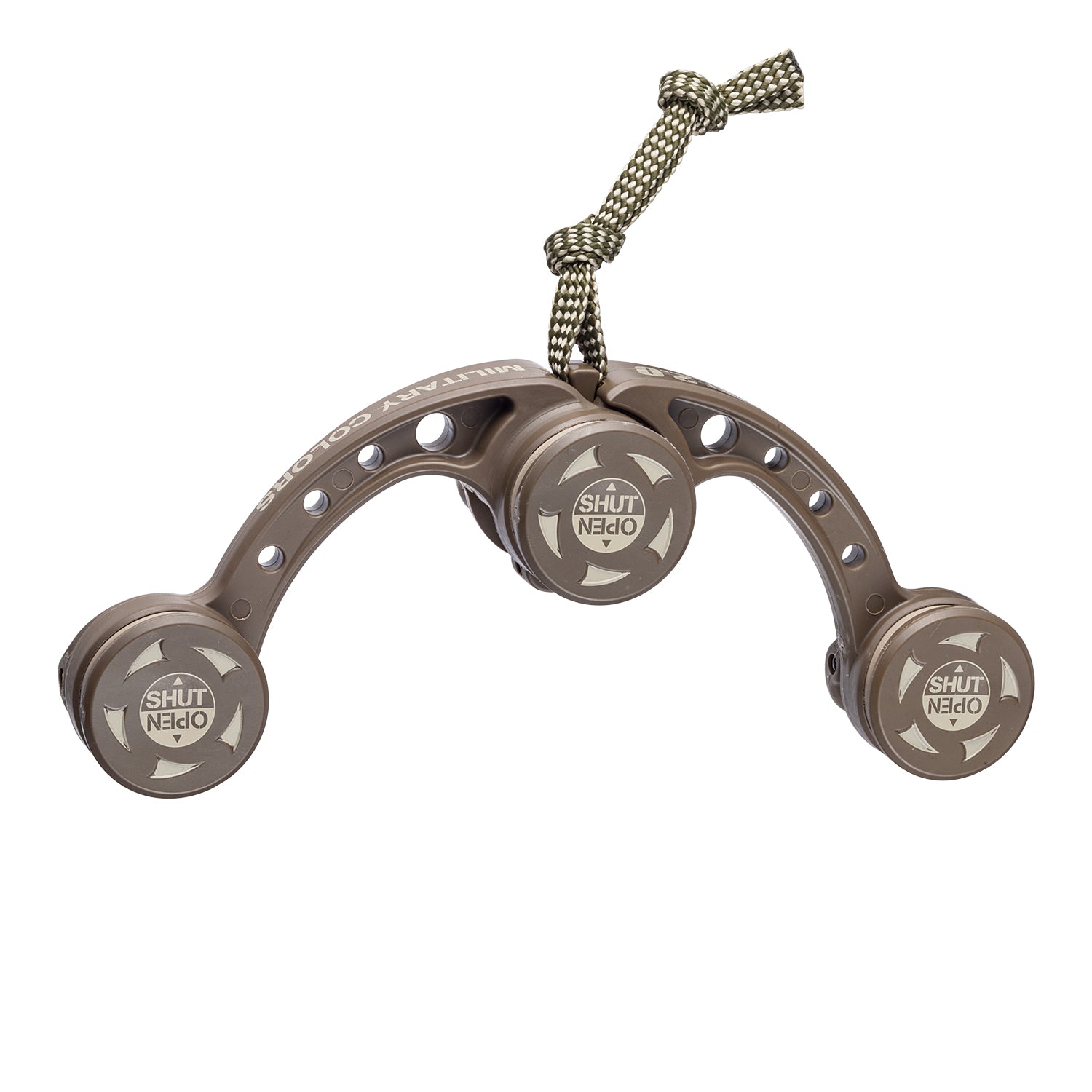

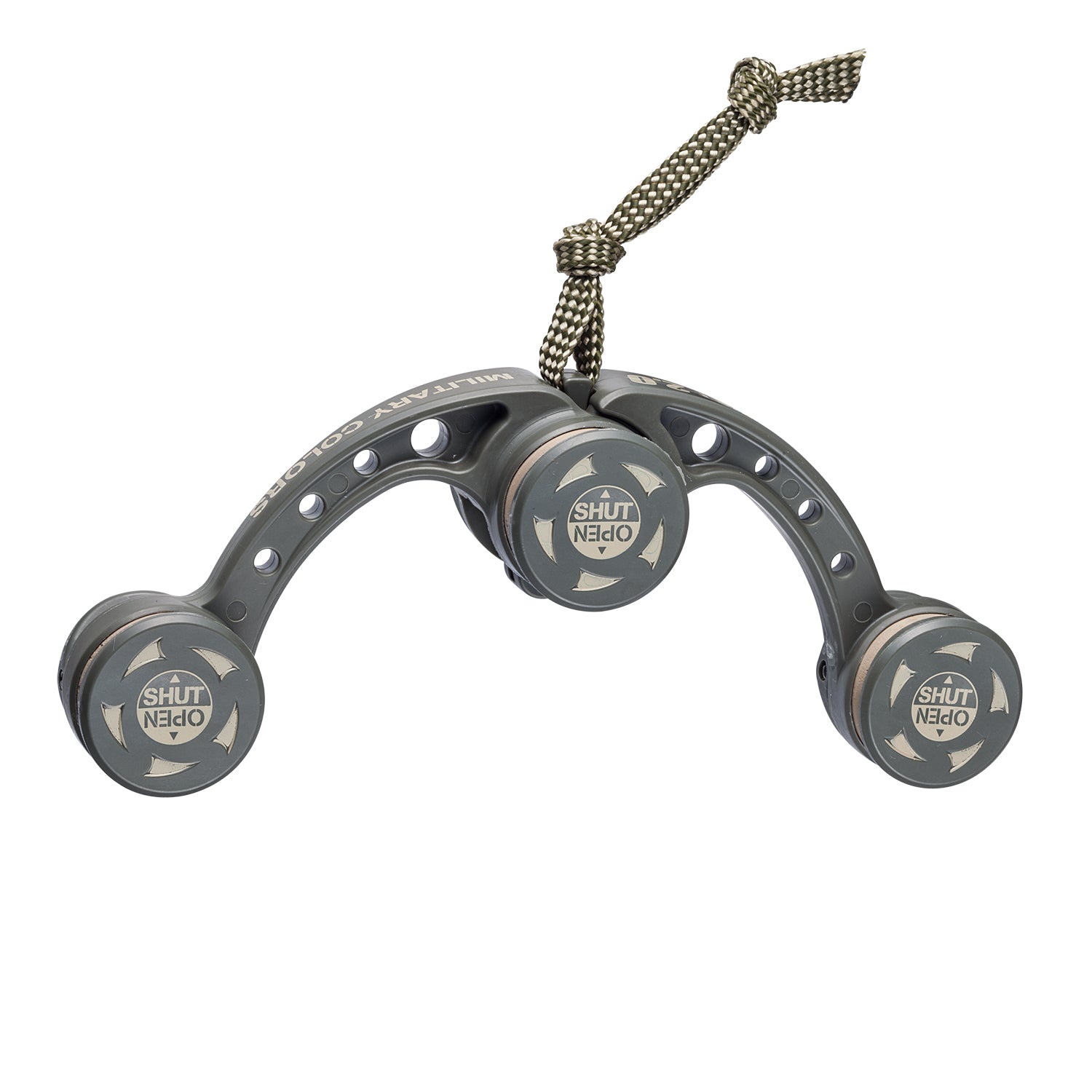

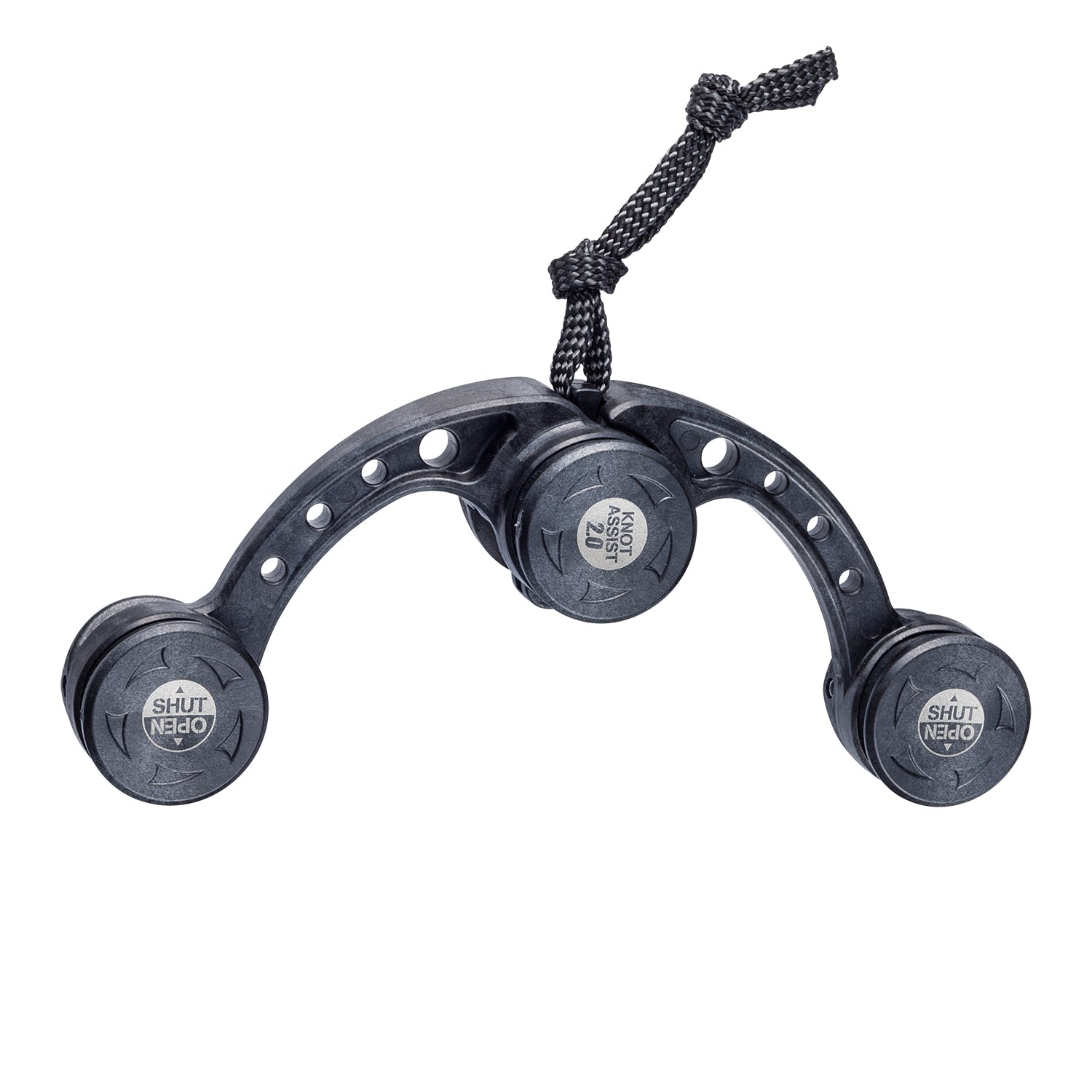

●Weight: Carbon Black 50g Military Colors 68g
●Material: CFRP (Carbon Fiber Reinforced Plastic Content 20%) GFRP (Glass Fiber Reinforced Plastic Content 55%)
Patent Application 2010-142111/2011-279546
MADE IN JAPAN

Compact Holding Style

Push the strap part to open the arm, pull it to close and lock it. It can be stored compactly when carrying.
With the switch type wavy line hook and offset arm, you can easily, surely and quickly tie the PE line and leader with an FG knot. The body is made of high-strength, rust-resistant reinforced plastic, and when carrying it, you can close the arm and store it compactly.

Off Set Arm Style

By simply wrapping the leader around a taut PE line in an S-shape, you can easily braid the line beautifully without creating any knots at the braiding point, and you can also smoothly transition to a half hitch.

Namigata+Switch Style

It can be easily fixed by winding the line around the wavy line hook 1-2 times and pressing the switch to the SHUT side.
The soft rubber prevents the line from becoming tangled, and it can handle PE: 0.3-6, Leader: 3lb-70lb.

Usage 1

Usage 2

3D View

 You can rotate the image by dragging the mouse sideways over it.
