Kousoku Recycler 2.0 Option Reverse Wind Spool 3 Pattern



When attached to the High Speed ​​Recycler 2.0 (sold separately), this 3-way spool can be used for three functions: "reverse winding", "removing salt", and "thin disposal"!

SPEC

●Size: [Spool] φ125mm x 86mm [Hand roller] φ47mm x 56mm
●Weight: [Spool] 412g [Hand roller] 68g
●Materials: [Spool] POM, ABS [Roller] Aluminum [Roller cover] Glass fiber reinforced plastic

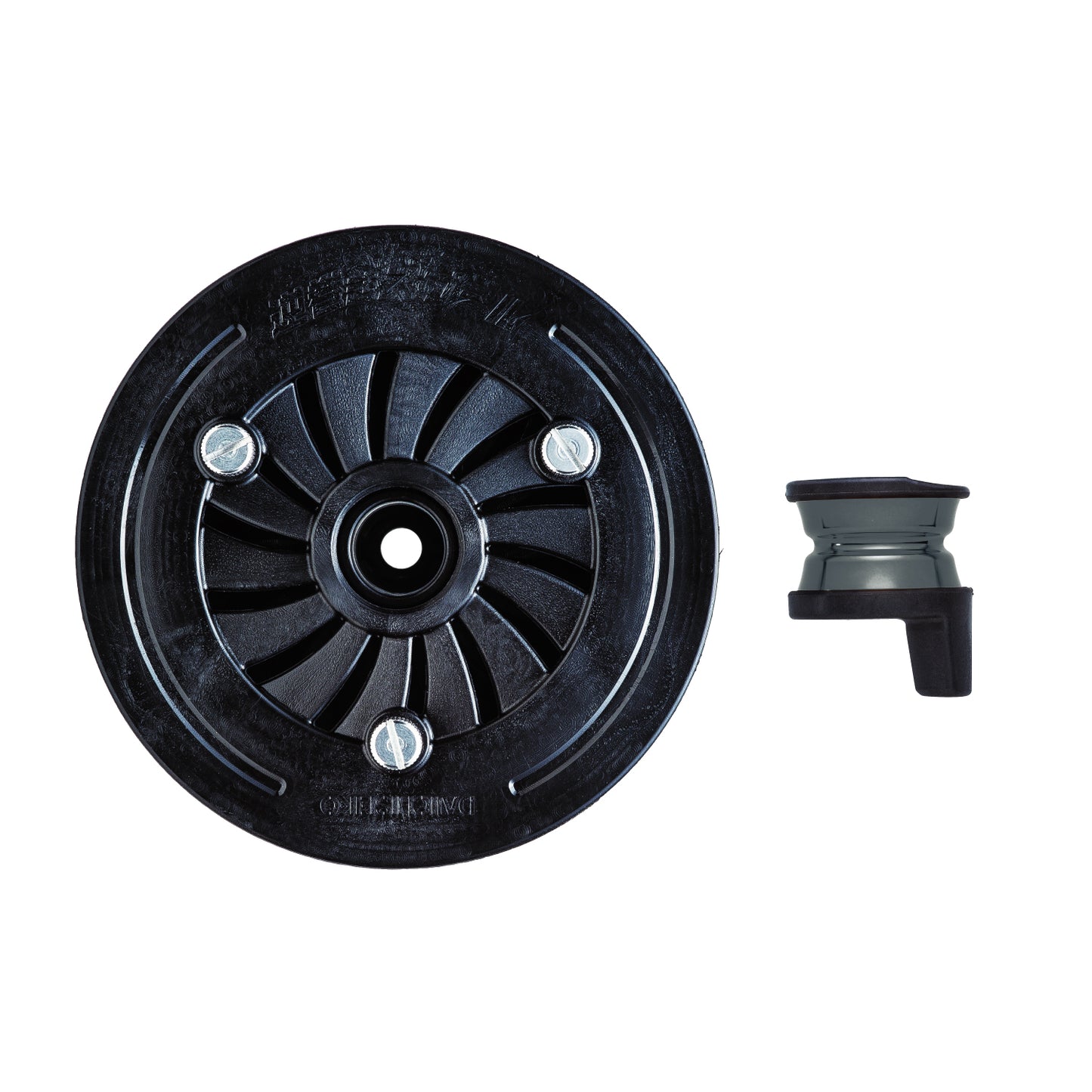

●Accessories: Spool assembly x 1 / Hand roller x 1
MADE IN CHINA

*Can also be used with the "High-speed Recycler".
The "Recycler DS Fully Equipped" has a fixed rotation direction, so the "Reverse Rewind Style" is
not possible.

[1] Reverse winding style

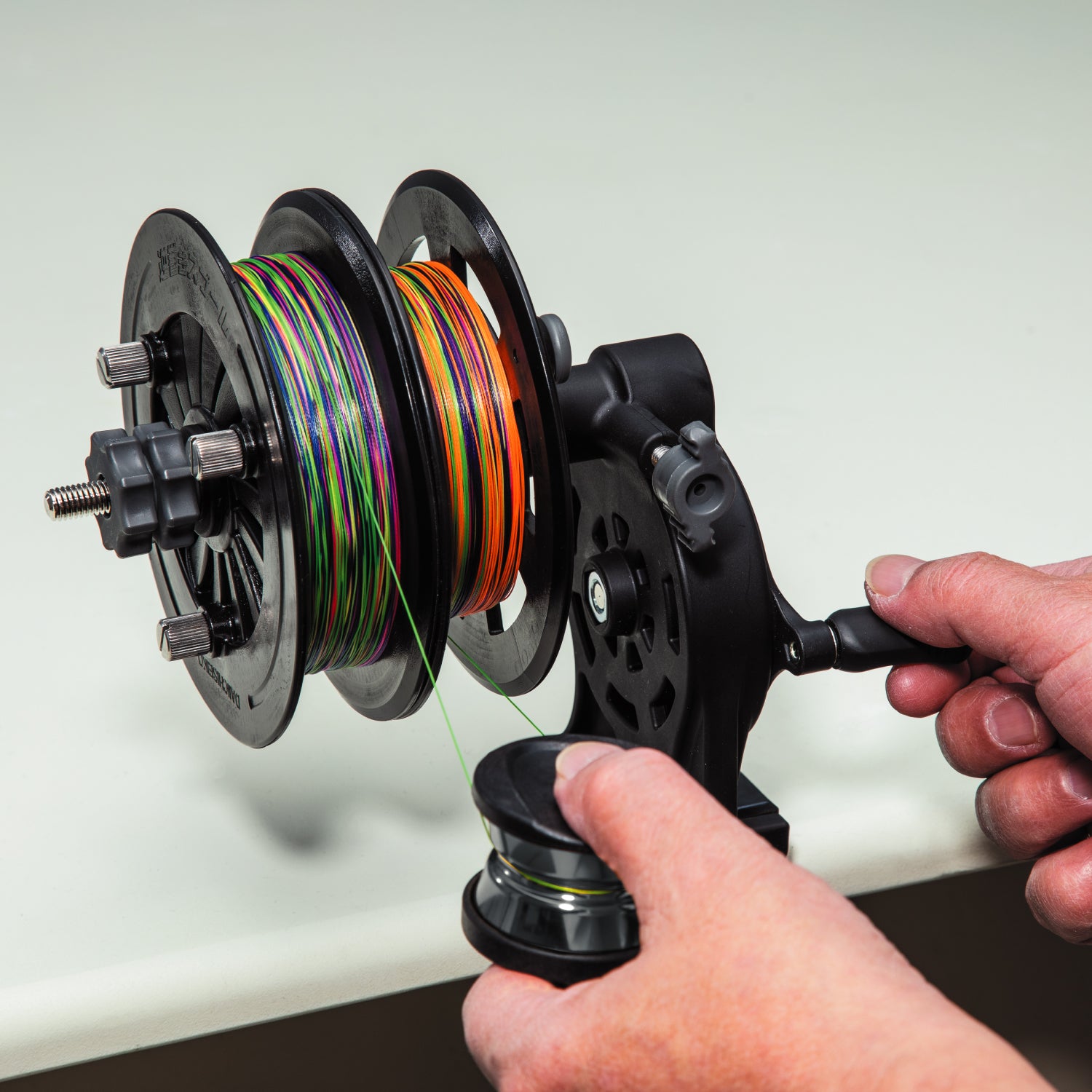

●By rewinding the line from the small spool to the large coaxial spool via a hand roller, you can switch the front and back of the line (reverse rewinding).

<Benefits of reverse rewinding>

●If the PE line is already wound on the reel
, rewinding the line in reverse will put the unused line at the tip!

●When winding a new PE line on a reel that needs a bottom winding
→ First wind the PE line on the reel, then wind the bottom line on top of it until it is just right. By rewinding the line in reverse, you can wind the PE line perfectly in one go!

[1] Reverse winding style

●Uses machined aluminum rollers with a smooth surface to prevent damage to the line.
●Built-in 2 ball bearings ensure smooth rotation.

[1] Reverse winding style

◆Line capacity for reverse winding (based on reel specifications) Compatible with spinning reels up to 14,000 class! ●PE [No.-m]: 1-1800 3-600 6-300 10-180 ●Nylon [No. (reference lb)-m]: 3(12)-750 6(25)-360 10(35)-200 12(40)-160　 ●Fluoro [No. (reference lb)-m]: 3(12)-675 6(25)-325 10(35)-185 12(40)-140 *Line less than 6 lb may break, so it cannot be used.

[1] Reverse winding style

☝ A mechanism that allows for smooth reverse winding

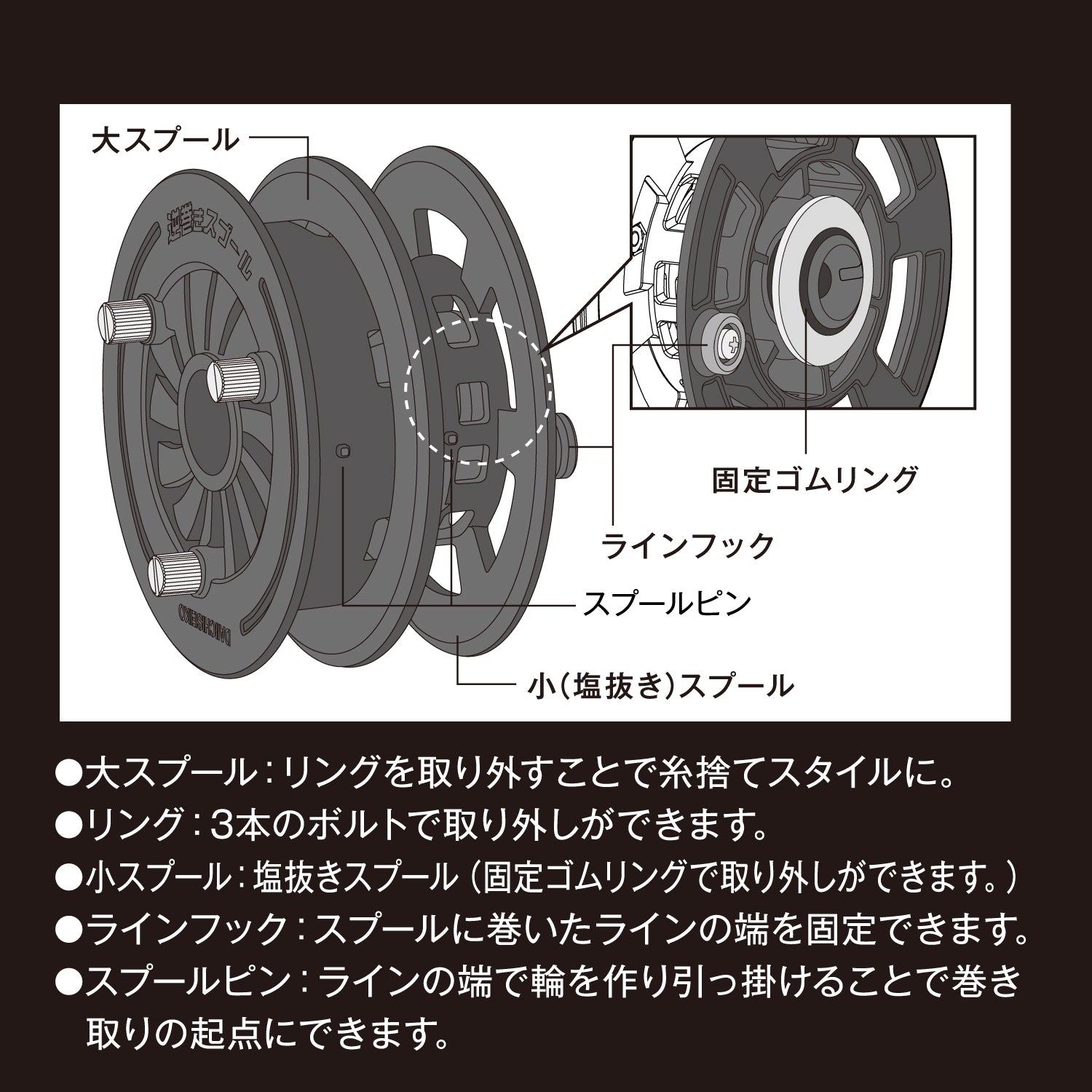

Two spools with different diameters are combined, and the diameter of the small spool with the line wound on it is set so that it does not exceed the diameter of the large spool.
By doing so, when rotating, the "large spool that winds in the line" always winds more than the "small spool that spits out the line", and the small spool spins freely while maintaining the right amount of tension to make up for the shortfall, allowing for smooth reverse winding. PAT.P

[2] Salt removal Style

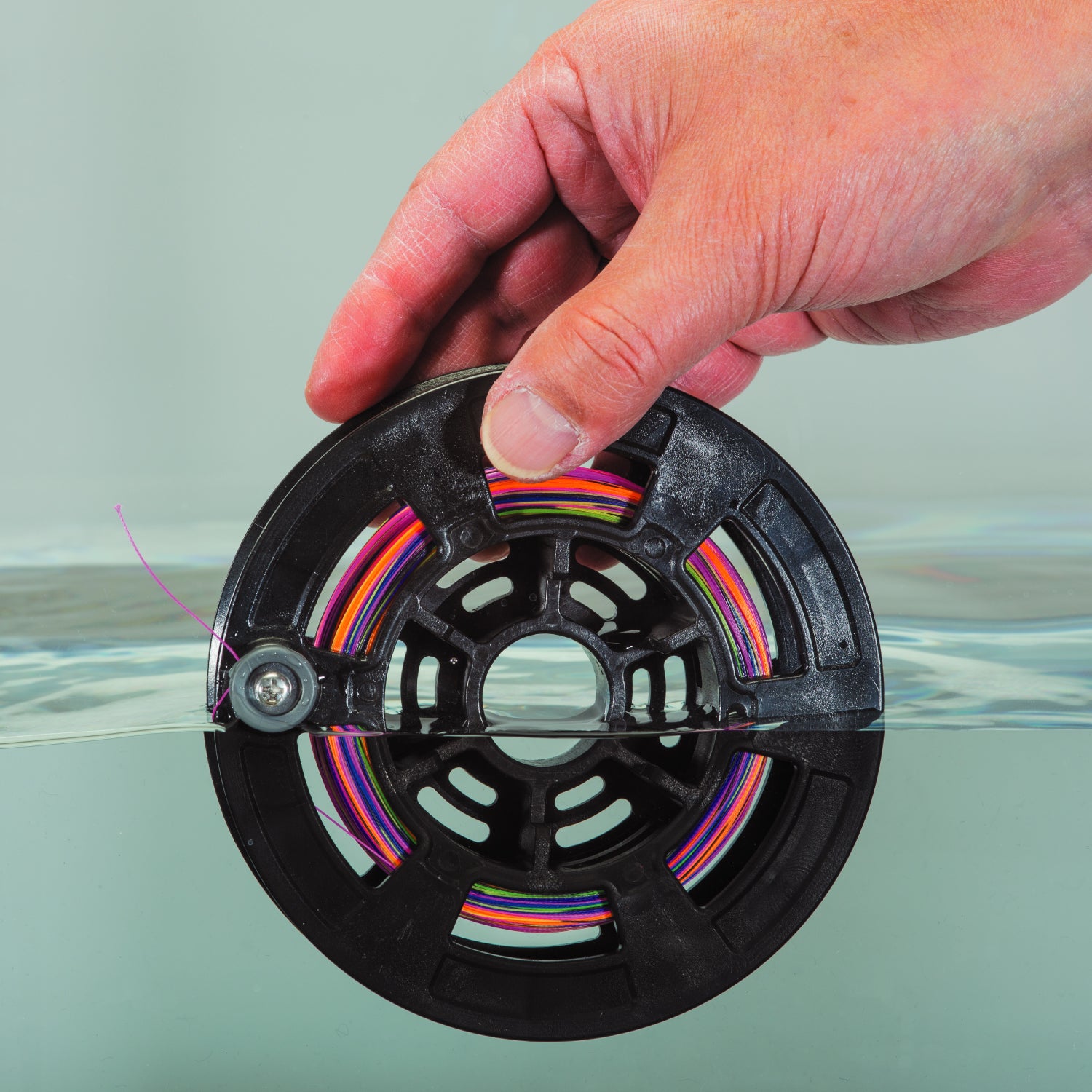

●You can desalinate the line by winding it onto a small spool with a hole for desalination and immersing the spool in warm water.

●Comes with a line hook to secure the end of the line.

[2] Salt removal Style

◆Salt removal compatible thread winding amount

●PE [No.-m]: 1-1800 3-600 6-300 10-180

[3] Thread-throwing Style

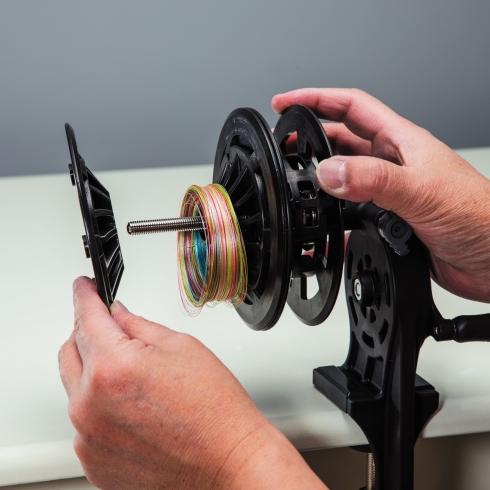

●By removing the ring from the large spool and winding it up, you can remove and discard the line wound on the reel.

[3] Thread-throwing Style

◆Line winding amount for line discarding

●PE [No.-m]: 1-4800 3-1600 6-800 10-480

●Nylon [No. (reference lb)-m]: 3(12)-2080 6(25)-1000 10(35)-715 12(40)-625

●Fluoro [No. (reference lb)-m]: 3(12)-1800 6(25)-865 10(35)-615 12(40)-540

Note

●Do not touch the rotating shaft or spool. You may be injured.
●Do not grab the line while it is being wound. You may cut your fingers on the line or injure yourself.
●Bolts and tightening nuts may come loose due to vibration or movement. Check from time to time to make sure they are tightened.
●Due to the structure of the product, the spools will rub against each other when rewinding in reverse, generating shavings. Wipe them off with tissue from time to time.
●Do not suddenly stop when rewinding in reverse. This may lead to line trouble.
●The amount of thread wound indicated should be considered a rough guide.
