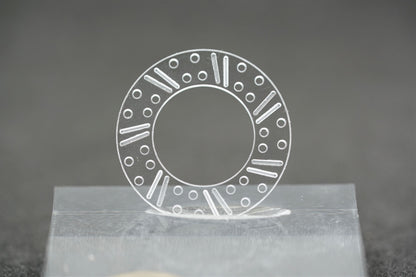

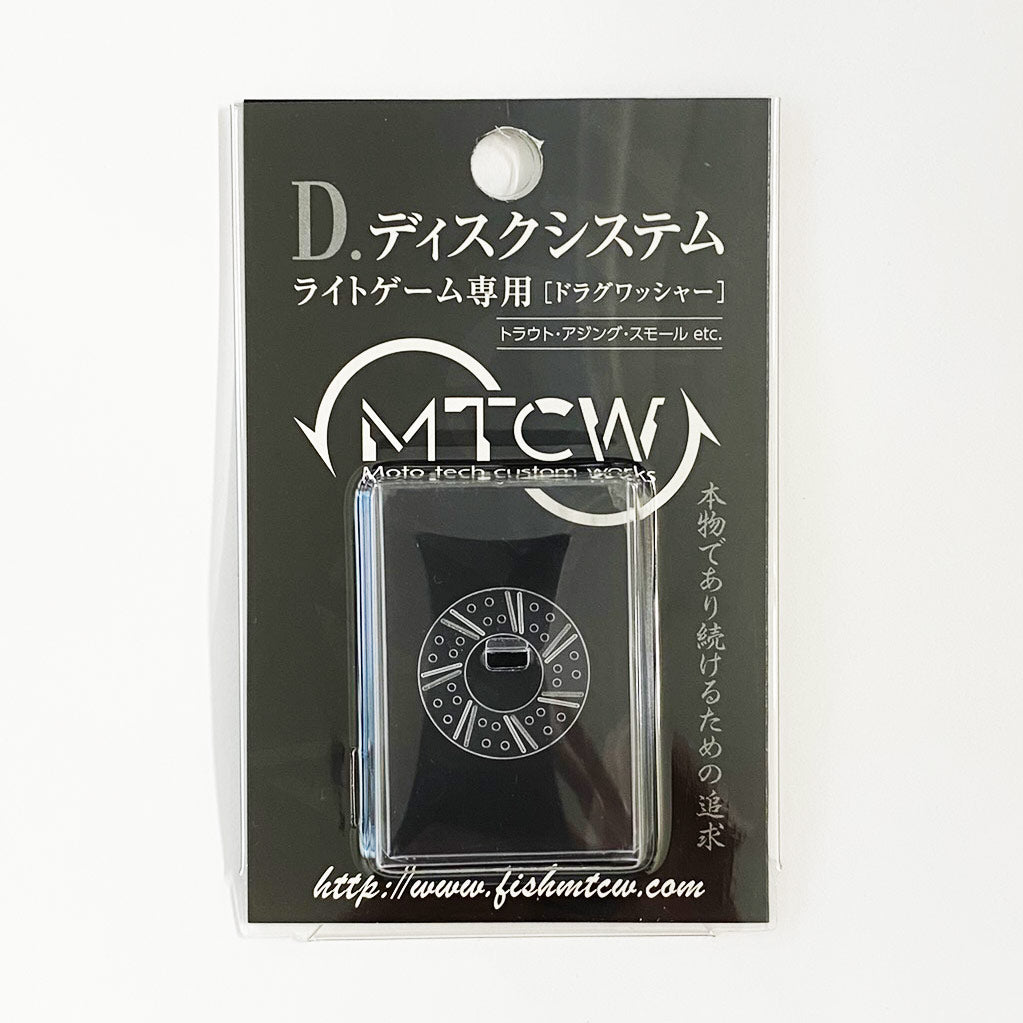

D.Disk System (Drag for ultrafine line only)

New "Drag Disc System D. Disc System" specially designed to improve drag performance for ultrafine lines!

Since the normal drag washer is made of felt material, it is prone to friction and load during the initial movement and is prone to line breakage.
Furthermore, the drag viscosity changes due to high frictional resistance and heat buildup, making it difficult to achieve stable drag performance.

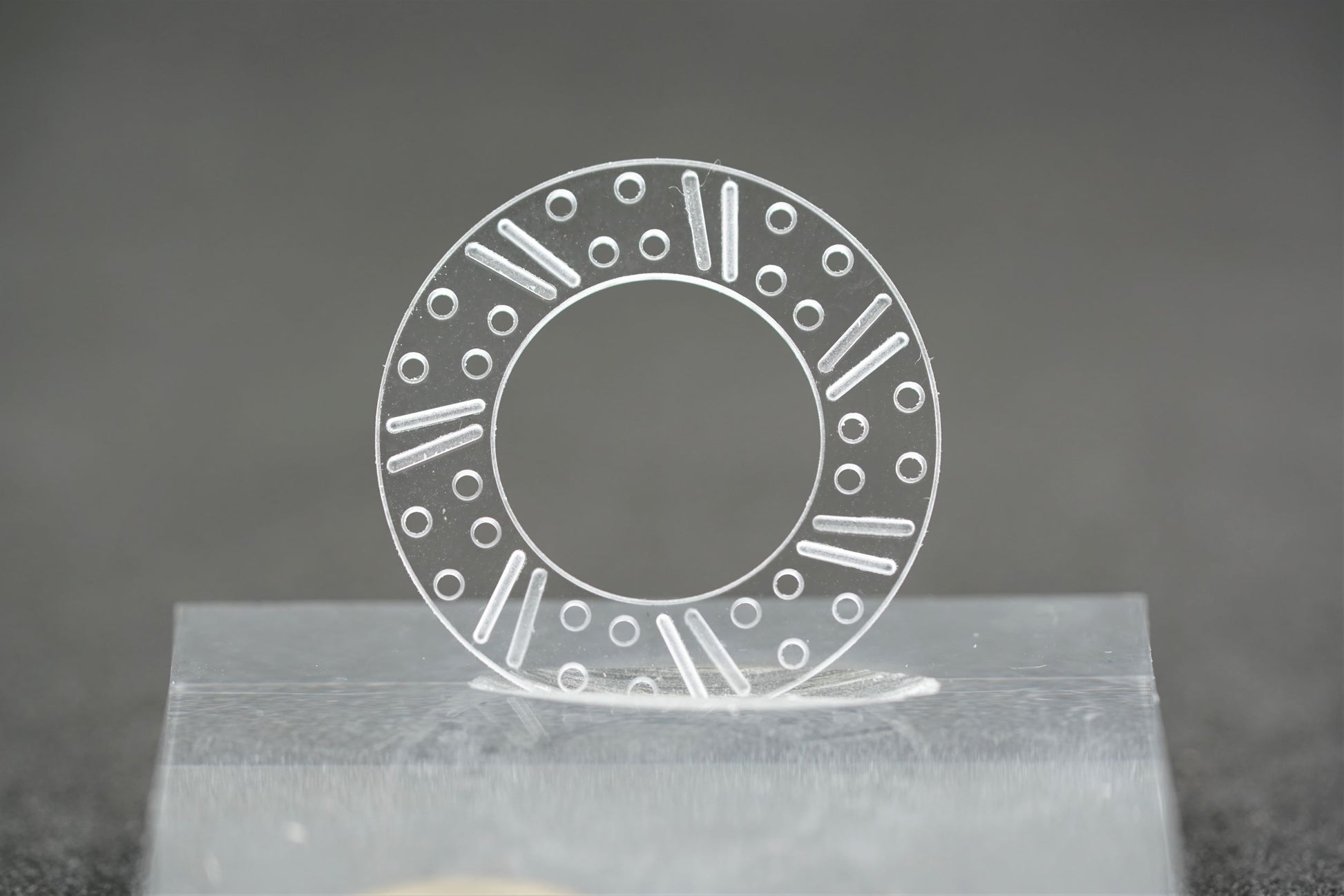

The D. Disk System developed this time has a unique slit design, compatible with ultrafine lines that are becoming mainstream these days, minimizes line breakage, and suppresses excessive drag.
The slit design allows the reel to naturally and smoothly release the drag from the initial action to the limit of the line, and the stable and moderate drag tension improves the reel performance.

The slit design also creates a grease reservoir on the disc, allowing grease to circulate when the drag is released.
When used in combination with the TD System, drag performance is dramatically improved.




Specifications

Material: Polycarbonate

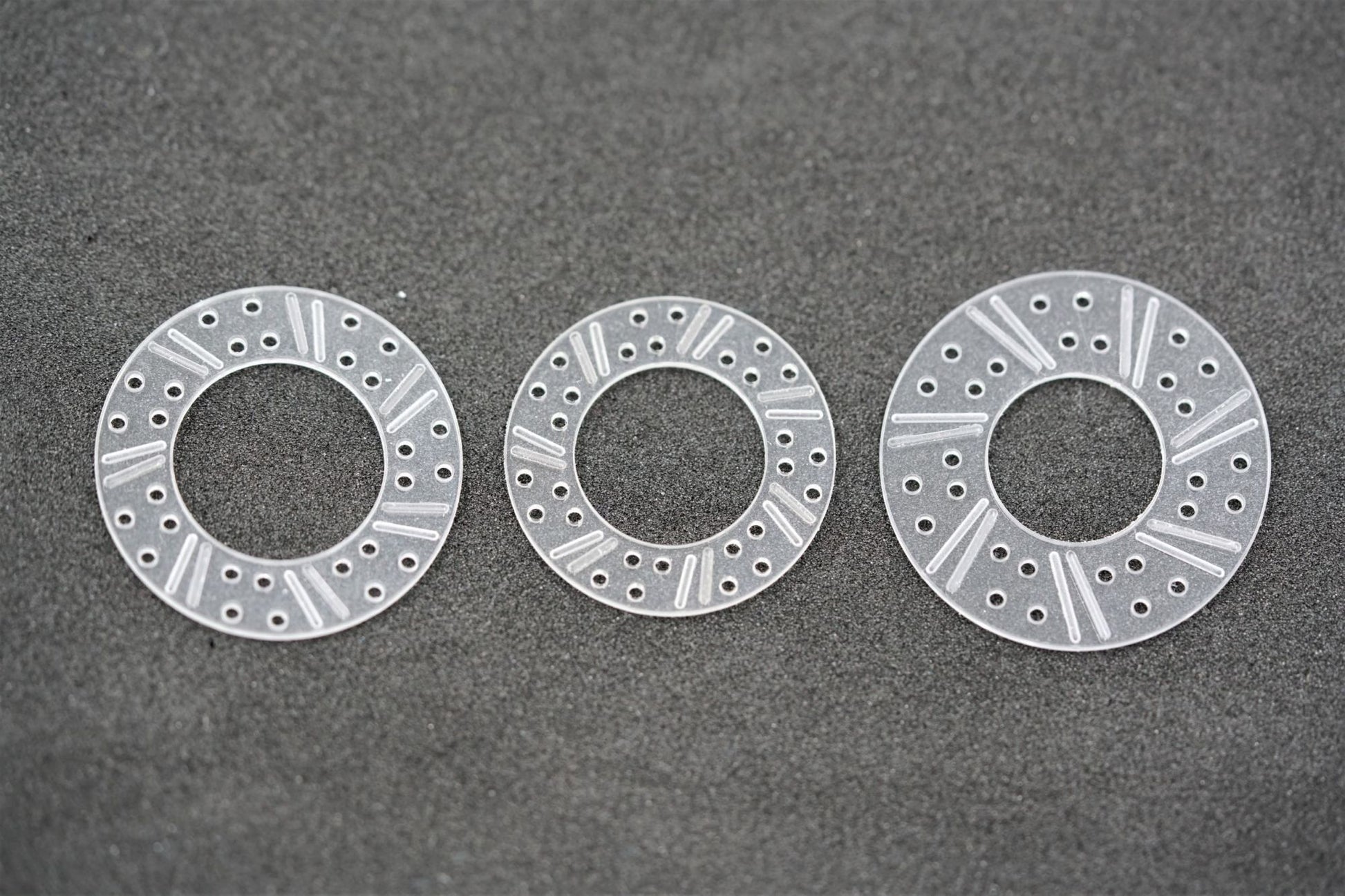

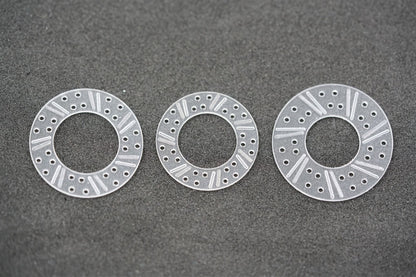

Size: Outer diameter x Thickness

For SHIMANO 20.7 mm x 1.0 mm
For LT DAIWA 23 mm x 1.0 mm
For DAIWA 24.7 mm×1.0 mm


Compatibility

Management Trout Fishing Area, Aging (Horse mackerel), Other Light Game Number 1000 - 2000 / Recommended Drag Grease MTDG-02, MTDG-03

for SHIMANO

01/04/07/10/14/18/22 STELLA 1000-C2500
01 STELLA FW 2500S, 07 STELLA 2500S
12/16/19 Vanquish
18 CARDIFF Ci4+
06/07/11/15 TWIN POWER
15/16 STRADIC
12/17 ULTEGRA
06 Sephia, 17 SAHARA, 17 SEDONA, 16 NASCI
1000-2000 of each reel
*For reels that use a single drag washer

for LT DAIWA

18/22 EXIST, EXIST SF 1000-2500, DAIWA LT Concept Reels
LUVIAS, AIRITY, STEEZ, PRESSO 1000-2500, CALDIA 1000-2500
AEGIS 1000-2500, 20/23 GEKKABIJIN 1000-2000, CERTATE 1000-2500
*For reels that use a single drag washer

for DAIWA

05/12/15 EXIST
07/12/15 LUVIAS
10/13/16 CERTATE
PRESSO/Z series
STEEZ TYPE-1
TD series, EMBLEM series
1000-2000 of each reel
*For reels that use a single drag washer


Differences in Slit Shapes



*D. Disk System

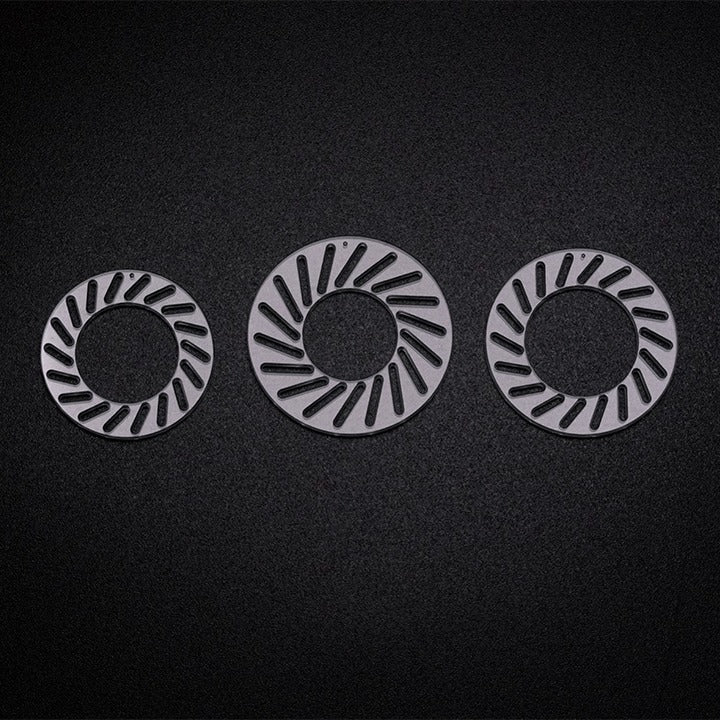

*D. Disk System -KAI- Modified

A new slit shape has been incorporated to improve the lack of power in the D. Disc System.
Grease accumulated in the newly designed slit gathers in the center and spreads out, circulating each time the drag is released.
This increases the reel performance with a strong, stable, and moderate drag tension while maintaining the conventional performance.
